ST 2.0mm 3.0mm Optical Fiber Connector Simplex with Metal Housing

Brand Name : TTI

Model Number : FOC-ST

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 8000 pcs/day

Delivery Time : 2-3 days

Packaging Details : PE bag

Connector Type : ST

Ferrule End-face : PC, UPC

Fiber Type : Singlemode, Multimode

Cable Type : Simplex

Cable OD : 0.9/2.0/3.0mm

Housing Material : Metal

Insertion Loss : <0.3dB

Return Loss : >50dB

Contact Now

ST 2.0mm 3.0mm Optical Fiber Connector for OM3 OM4 Fiber Optic Cable

Description:

ST is probably still the most popular connector for multimode networks, like most buildings and campuses.

It has a bayonet mount and a long cylindrical 2.5 mm ceramic (usually) or polymer ferrule to hold the fiber.

Features:

Precision mechanical dimension

Boots in a variety of colors

Low insertion loss

High back reflection loss
Stable capability and high reliability

Application:

Broadband CATV

Telecom network

Local area networks
Wide area networks
Optical test equipment

Specification:

Item	Single Mode	Multi Mode
Insertion Loss	≦0.2dB	≦0.3bB
Insert-Pull Test	1000 times
Operating Temperature	-40°C ~ +85°C
Ceramic Ferrule Specification	125.5um concentricity deviations:≦1um	127um concentricity deviations:≦3um
Suitable Fiber	9/125um	50/125um,62.5/125um

Order Information:

Item	Connector Description	Item	Connector Description
	PC/UPC/APC		PC/UPC/APC
Connector Singlemode 9/125	ST	Connector Multimode (50/125 or 62.5/125)	ST
	SC		SC
	FC		FC
	LC		LC
	MU		MU
	MTRJ(female)		MTRJ(female)
	MTRJ(male)		MTRJ(male)
	DIN

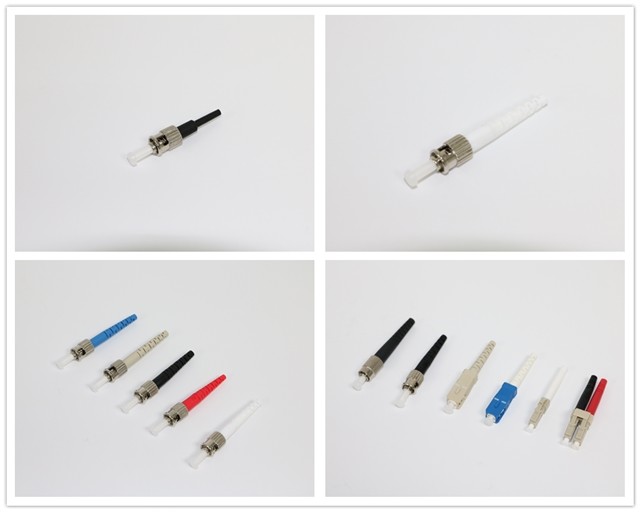

Product Picture:

ST 2.0mm 3.0mm Optical Fiber Connector Simplex with Metal Housing
