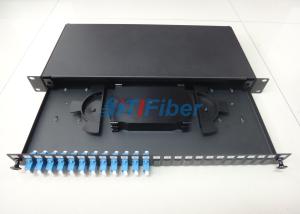

Black Color 19’’ Fiber Optic Patch Panel with 12 SC Simplex Port

  • 1
  • 2
  • 3

Brand Name : TTI

Model Number : OTB-RS-LC24

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 5000 pcs/Month

Delivery Time : 2-3 days

Packaging Details : Box

Structure : 19'' Rack Mounted

Model : Fixed Type, Slidable Type

Connector : LC-DX

Material : Cold Rolled Steel, AL

Color : Black, White, Grey

Port : 24 LC DX

Height : 1U

Thickness : 0.8mm,1.0mm, 1.2mm

Contact Now

Black Color 19’’Fiber Optic Patch Panel with 12 SC Simplex Port

Description:

Can be used in 19'' standard distribution frame;

Standard size, light weight and reasonable structure

Splice tray inside changeable

Suitable for ribbon and single fiber

SC/ST/FC/LC/MPO ports is available

Front mark on the plate is easy for identification and operation

Easy for management and operation

Feature:

Applicable in the straight through or branch connection of indoor cable

Available for the distribution and terminal connection of various kinds of optical fiber system

Max capacity cores from 12 to 96 with SC/LC/ST/FC connectors

Insertion loss: <0.3dB

Return loss: PC< 40 dB, UPC<50dB, APC< 60dB

Working temperature -25°C~+45°C

Application:

Suitable for the protective connection between cable and pigtail

Unique structure, easy installation, for indoor use

Suitable for the connection between optical cables and optical communication device

Specification:

Type OTB-RS-1UA OTB-RS-2UA OTB-RS-1UB OTB-RS-2UB OTB-RS-1U-3MPO OTB-RW-1U
Size(mm) 430*300*1U 430*250*2U 482*217*1U 482*217*2U 482*296*1U 430*300*1U
Max capacity(core) 24 48 24 48 36 24
Weight(kg) 3.5 4.0 3.5 4.0 3.0 4.7

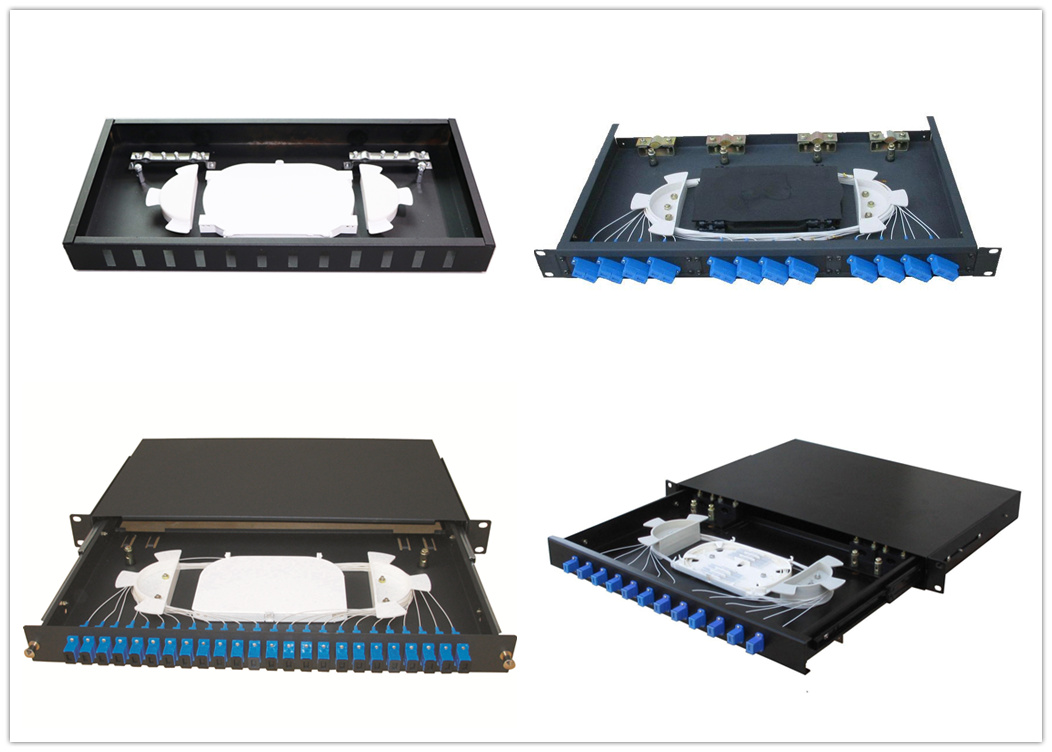

Product Picture:

Black Color 19’’ Fiber Optic Patch Panel with 12 SC Simplex Port
