Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters

  • 1
  • 2
  • 3

Brand Name : TTI

Model Number : OTB-RS

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 5000 pcs/Month

Delivery Time : 2-3 days

Packaging Details : Box

Structure : 19'' Rack Mounted

Model : Fixed Type

Connector : SC LC FC ST E2000 MPO

Material : Cold Rolled Steel, AL

Color : Black, White, Grey

Port : 6, 12, 24, 48, 72, 96, 144

Height : 1U, 2U, 3U, 4U, 8U

Thickness : 0.8mm,1.0mm, 1.2mm

Contact Now

Fiber Optic Terminal Box ODF Box for SC FC LC Fiber Adapters

Description:

The removable front panels chassis is a 19 inch sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.

The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.

The Panel Color is grey and black.

Feature:

Environment temperature:-25℃~+45℃
Fiber bending radium guaranteed more than 40mm:≥40mm
Material: Cold rolled steel
High quality finish,without sharp edges.
With changeable panel for duplex or simplex adapter,easily combination with your real application.

Adoptable adapter types: FC, SC,LC/Duplex.

Application:

The product( 96 core fiber optic termination box) can be used on the terminal of the optical cables,different types and structures,the diameter of which are within 20mm tray.

Specification:

Fixed Type:

Type OTB-RF-1UA OTB-RF-2UA OTB-RF-1UB OTB-RF-1UB OTB-RF-1UC OTB-RF-2UC
Size(mm) 430*250*1U 430*250*1U 482*295*1U 320*240*100 350*340*120 350*340*120
Max capacity(core) 24 48 24 48 24 48
Weight(kg) 2.6 3.8 3 4 3 5

Slidable Type:

Type OTB-RS-1UA OTB-RS-2UA OTB-RS-1UB OTB-RS-2UB OTB-RS-1U-3MPO OTB-RW-1U
Size(mm) 430*300*1U 430*250*2U 482*217*1U 482*217*2U 482*296*1U 430*300*1U
Max capacity(core) 24 48 24 48 36 24
Weight(kg) 3.5 4.0 3.5 4.0 3.0 4.7

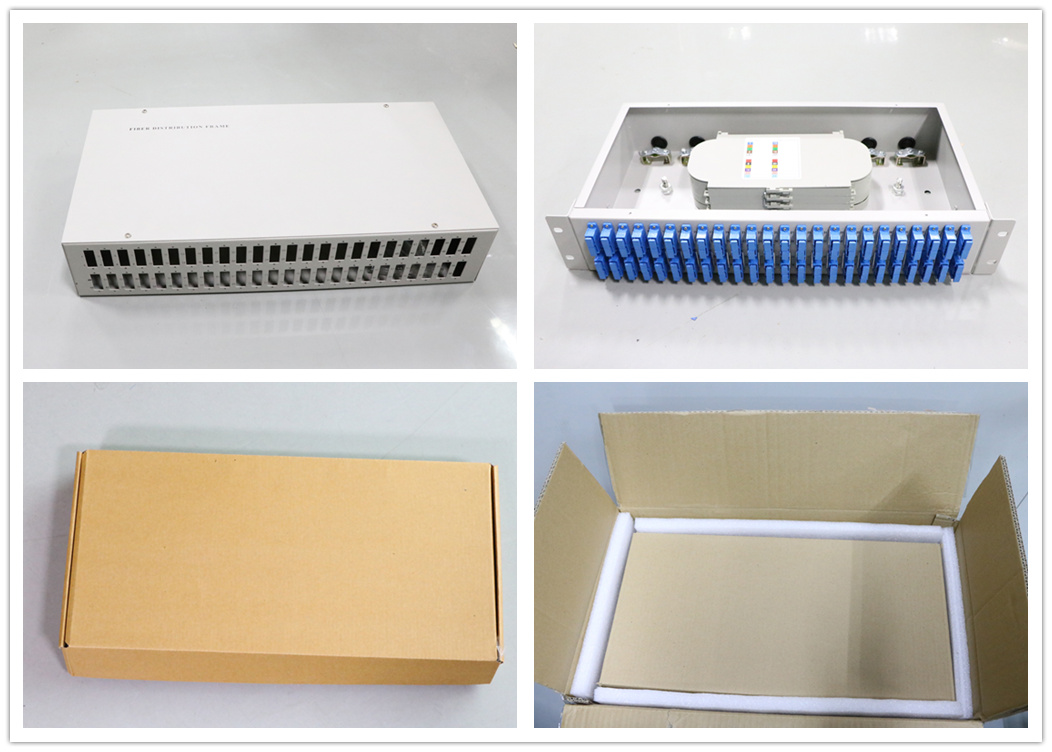

Product Picture:

Fiber Optic Termination Box ODF Box For SC FC LC Fiber Adapters
