2core Outdoor Fiber Optic FTTH Network Drop Cable with FRP Strength Member

Brand Name : TTI

Model Number : FTTH-2C

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 8000 pcs/day

Delivery Time : 2-3 days

Packaging Details : PE bag

Fiber Type : G652D G657A1 G657A2

Cable core : 2/4/6/8/12 core

Fiber Mode : Singlemode Multimode

Cable Jacket : LSZH

Usage : Indoor Outdoor

Strength : FRP KFRP Steel

Cable color : White Black

Contact Now

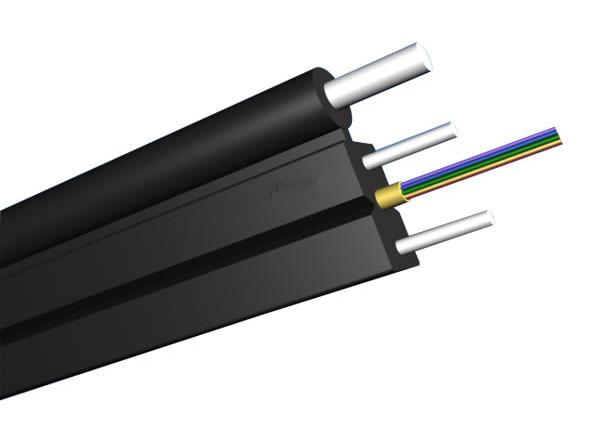

2core Outdoor Fiber Optic FTTH Drop Cable with FRP Strength Member

Description:

FTTH Drop Cable fiber unit is positioned in the centre.

Two steel wires or Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

A steel wire as the additional strength member is also applied.

Then the cable is completed with a black or color LSZH sheath.

Feature:

Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

Environmental protection- Low smoke, zero halogen and flame retardant sheath.

Good preformance of water-proof.

Soft and bendable, easy to deploy and maintenance.

Smaller diameter, Light weight, and high practicability.

Application:

High speed optical routes in buildings (FTTx)

Application in L band

All types of fiber cables with different structures

High performance optical network operating

Specification:

Cable Construction Parameter:

Fiber Core	1	2	1	4
Cable Dimension(mm)	2.0×5.0	2.0×5.0	2.0×5.3	2.0×5.3
Cable Weight(kg/km)	9	10	11	12

Mechanical & Environmental Performance:

Max Load (N)	Long Term	60	60	60	60
Max Load (N)	Short Term	120	120	120	120
Bending Radius(CM)	Dynamic	30
Bending Radius(CM)	Static	15

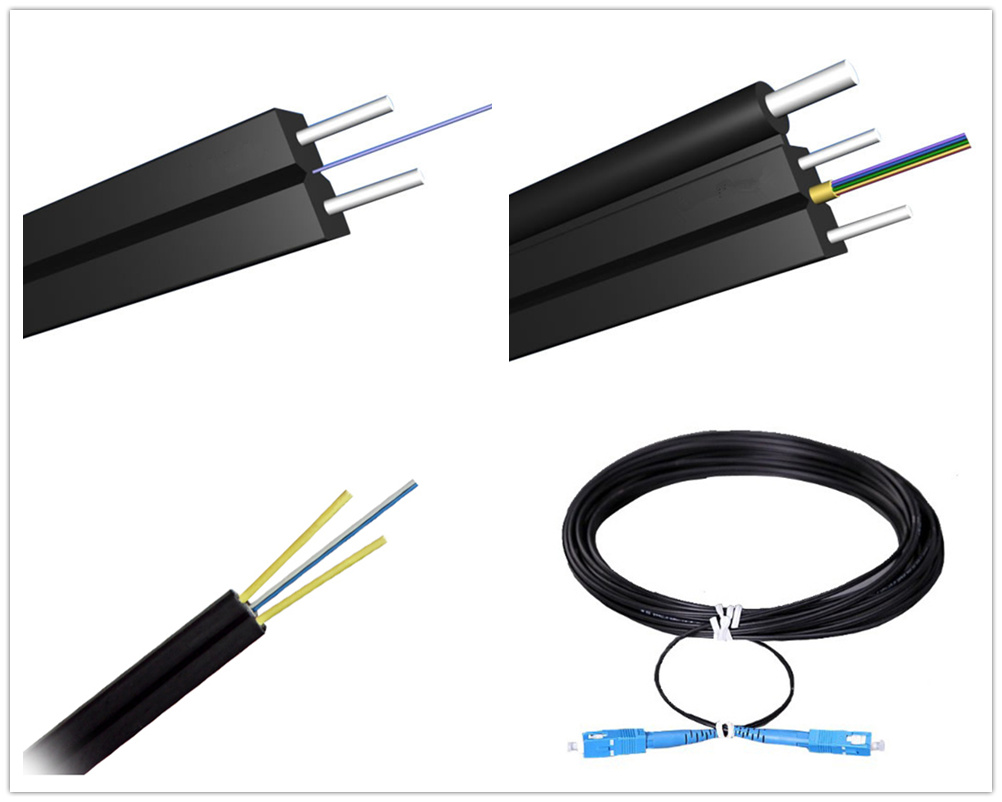

Product Picture:

2core Outdoor Fiber Optic FTTH Network Drop Cable with FRP Strength Member
